Arenapro-05

FIFA Standard comply/Low weight/Pro LED Stadium Light

A high-performance LED luminaire specifically engineered for large-scale professional sports venues, initially deployed in a Premier League stadium. Designed to meet the rigorous standards of top-tier sports lighting, it delivers an exceptional luminous efficacy with multiple beam angle options (22°~95°) to accommodate diverse lighting requirements. It ensures optimal brightness, horizontal uniformity, and vertical uniformity, providing an unparalleled visual experience for athletes, spectators, and live broadcasts. Additionally, its lightweight construction reduces the number of fixtures required, minimizes installation and maintenance costs, and alleviates structural reinforcement concerns, making it an efficient and cost-effective solution for stadium lighting upgrades.

ARENAPRO-05 50W
ARENAPRO-05 50W

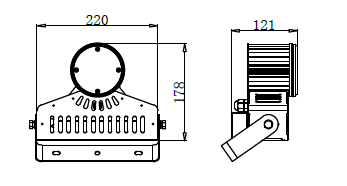

Arenapro-05 50Watts

ModelDimension(mm)Weight(KG)Flux(lm)
50 Watts220X178x1212.28500
Color Temperature2700-3500K/5000-6000K/6500-7500K
CRI75 Regular, customizable up to 95
Beam angle22°/30°/45°/70°/95°
Input Voltage100-277V/AC
Frequency50-60 Hz
LED Efficiency170LM/W
Power Factor≥95%

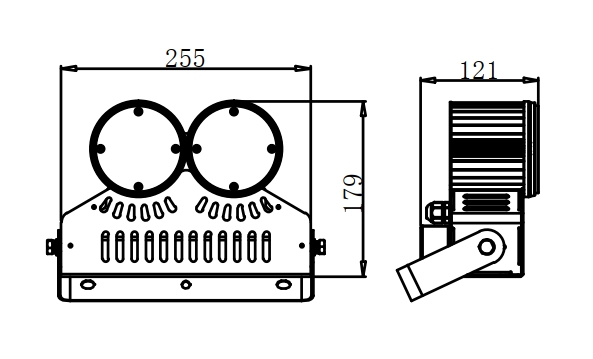

Arenapro-05 100Watts

Model

Dimension(mm)

Weight(KG)

Flux(lm)

100 Watts255 X 179 x 121317000
Color Temperature2700-3500K/5000-6000K/6500-7500K
CRI

75 Regular, customizable up to 95

Beam angle22°/30°/45°/70°/95°
Input Voltage100-277V/AC
Frequency50-60 Hz
LED Efficiency170LM/W
Power Factor≥95%

Arenapro-05 150Watts

Model

Dimension(mm)

Weight(KG)

Flux(lm)

150 Watts348 X 98 x 1763.625500
Color Temperature2700-3500K/5000-6000K/6500-7500K
CRI

75 Regular, customizable up to 95

Beam angle22°/30°/45°/70°/95°
Input Voltage100-277V/AC
Frequency50-60 Hz
LED Efficiency170LM/W
Power Factor≥95%

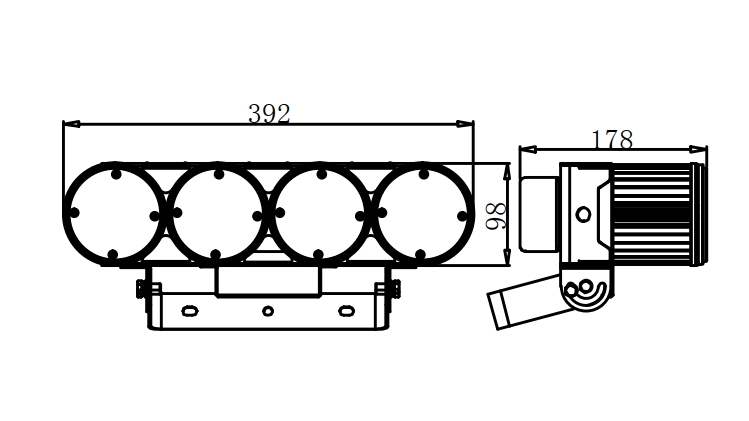

Arenapro-05 200Watts

Model

Dimension(mm)

Weight(KG)

Flux(lm)

200 Watts392 X 98 x 1784.634000
Color Temperature2700-3500K/5000-6000K/6500-7500K
CRI

75 Regular, customizable up to 95

Beam angle22°/30°/45°/70°/95°
Input Voltage100-277V/AC
Frequency50-60 Hz
LED Efficiency170LM/W
Power Factor≥95%

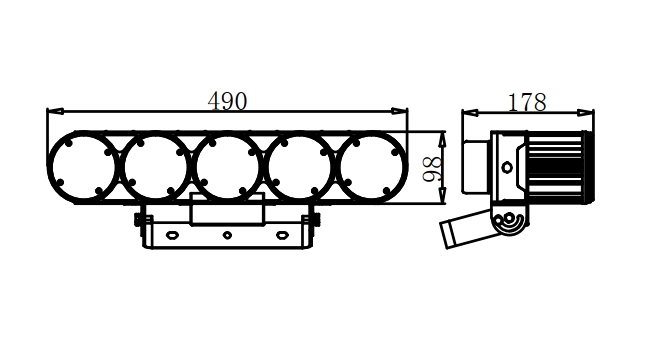

Arenapro-05 250Watts

Model

Dimension(mm)

Weight(KG)

Flux(lm)

250 Watts490 X 98 x 1785.742500
Color Temperature2700-3500K/5000-6000K/6500-7500K
CRI

75 Regular, customizable up to 95

Beam angle22°/30°/45°/70°/95°
Input Voltage100-277V/AC
Frequency50-60 Hz
LED Efficiency170LM/W
Power Factor≥95%

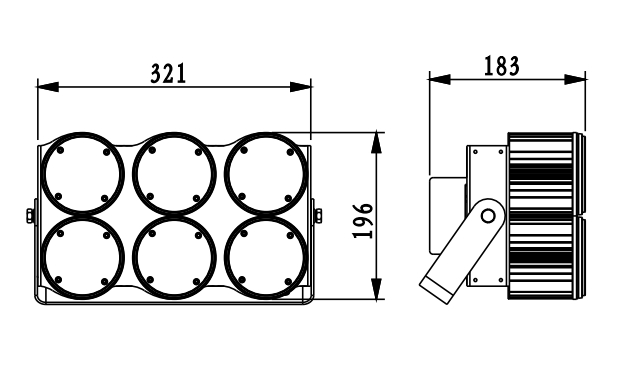

Arenapro-05 300Watts

Model

Dimension(mm)

Weight(KG)

Flux(lm)

300 Watts321 X 196 x 1837.151000
Color Temperature2700-3500K/5000-6000K/6500-7500K
CRI

75 Regular, customizable up to 95

Beam angle22°/30°/45°/70°/95°
Input Voltage100-277V/AC
Frequency50-60 Hz
LED Efficiency170LM/W
Power Factor≥95%

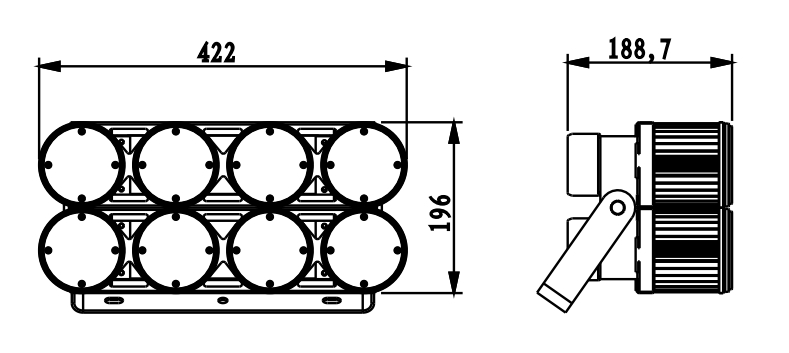

Arenapro-05 400Watts

Model

Dimension(mm)

Weight(KG)

Flux(lm)

400 Watts422 X 196 x 1898.968000
Color Temperature2700-3500K/5000-6000K/6500-7500K
CRI

75 Regular, customizable up to 95

Beam angle22°/30°/45°/70°/95°
Input Voltage100-277V/AC
Frequency50-60 Hz
LED Efficiency170 LM/W
Power Factor≥95%

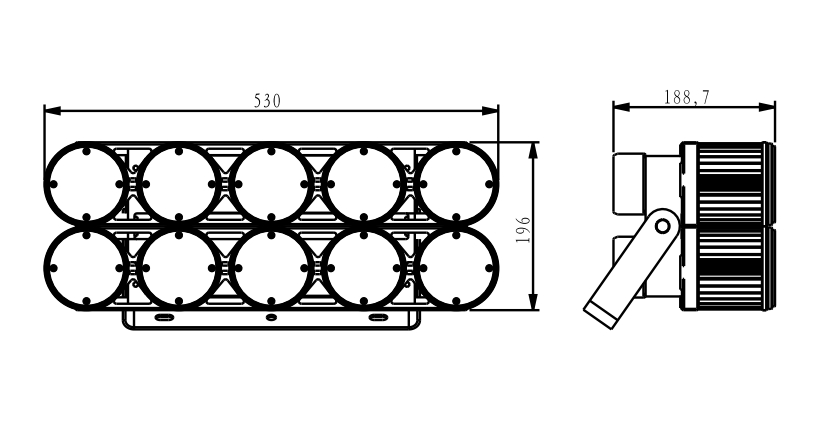

Arenapro-05 500Watts

Model

Dimension(mm)

Weight(KG)

Flux(lm)

500 Watts530 X 196 x 18910.285000
Color Temperature2700-3500K/5000-6000K/6500-7500K
CRI

75 Regular, customizable up to 95

Beam angle22°/30°/45°/70°/95°
Input Voltage100-277V/AC
Frequency50-60 Hz
LED Efficiency170 LM/W
Power Factor≥95%

Arenapro-05 600Watts

Model

Dimension(mm)

Weight(KG)

Flux(lm)

600 Watts422 X 315 x 18910.6102000
Color Temperature2700-3500K/5000-6000K/6500-7500K
CRI

75 Regular, customizable up to 95

Beam angle22°/30°/45°/70°/95°
Input Voltage100-277V/AC
Frequency50-60 Hz
LED Efficiency170 LM/W
Power Factor≥95%

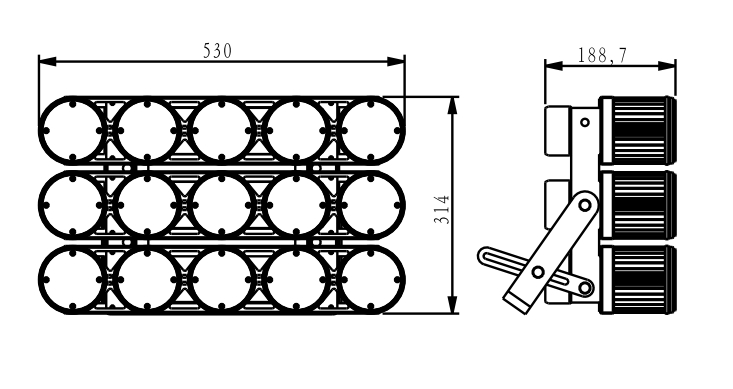

Arenapro-05 750Watts

Model

Dimension(mm)

Weight(KG)

Flux(lm)

750 Watts530 X 315 x 18913.3127500
Color Temperature2700-3500K/5000-6000K/6500-7500K
CRI

75 Regular, customizable up to 95

Beam angle22°/30°/45°/70°/95°
Input Voltage100-277V/AC
Frequency50-60 Hz
LED Efficiency170 LM/W
Power Factor≥95%

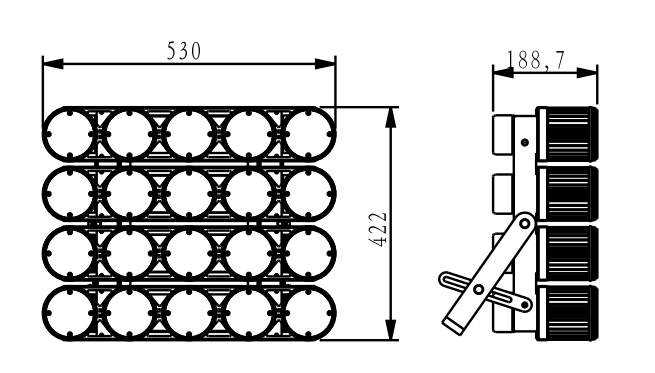

Arenapro-05 1000Watts

Model

Dimension(mm)

Weight(KG)

Flux(lm)

1000 Watts530 X 422 x 18916.8170000
Color Temperature2700-3500K/5000-6000K/6500-7500K
CRI

75 Regular, customizable up to 95

Beam angle22°/30°/45°/70°/95°
Input Voltage100-277V/AC
Frequency50-60 Hz
LED Efficiency170 LM/W
Power Factor≥95%

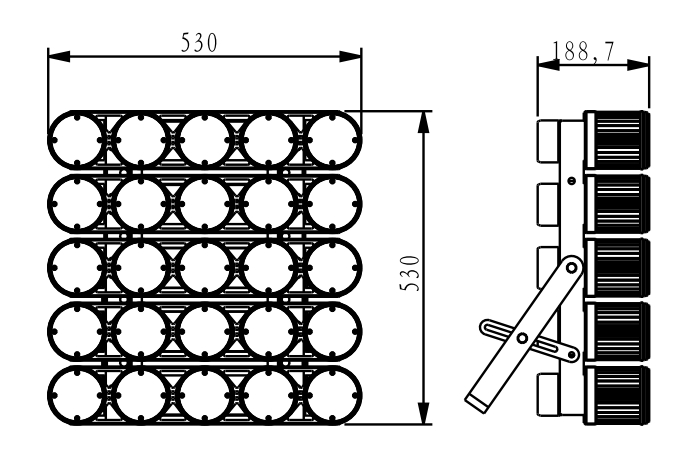

Arenapro-05 1200Watts

Model

Dimension(mm)

Weight(KG)

Flux(lm)

1200 Watts585 X 585 x 21420.5204000
Color Temperature2700-3500K/5000-6000K/6500-7500K
CRI

75 Regular, customizable up to 95

Beam angle22°/30°/45°/70°/95°
Input Voltage100-277V/AC
Frequency50-60 Hz
LED Efficiency170 LM/W
Power Factor≥95%

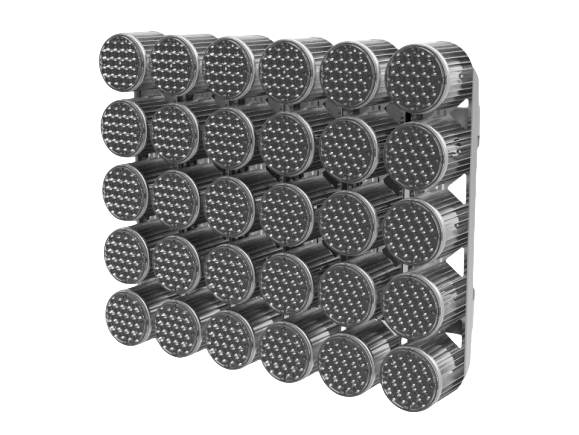

Arenapro-05 1500Watts

Model

Dimension(mm)

Weight(KG)

Flux(lm)

1500 Watts638 X 530 x 18924.6255000
Color Temperature2700-3500K/5000-6000K/6500-7500K
CRI

75 Regular, customizable up to 95

Beam angle22°/30°/45°/70°/95°
Input Voltage100-277V/AC
Frequency50-60 Hz
LED Efficiency170 LM/W
Power Factor≥95%

Arenapro-05 2000Watts

Model

Dimension(mm)

Weight(KG)

Flux(lm)

2000 Watts854 X 530 x 18933340000
Color Temperature2700-3500K/5000-6000K/6500-7500K
CRI

75 Regular, customizable up to 95

Beam angle22°/30°/45°/70°/95°
Input Voltage100-277V/AC
Frequency50-60 Hz
LED Efficiency170 LM/W
Power Factor≥95%

Application

Products Video

Installation

installation arenapro-05

Product Details

details arenapro-05

Accessories

accessory arenapro-05

Lighting Distribution

distribution arenapro-05
distribution arenapro-05-2

Spectrum

spectrum-arenapro05
spectrum-arenapro05
spectrum-arenapro05

Caution

  • In case of any damage or accident happend,customers who use this lamp please don’t take apart the lamp or change any part of it.
  • If there is any un-normal condition after installation,such as smoking,peculiar smell,noise,etc may cause electric shock or fire hazard, please make power off immediately and contact with your installation company.Customers shouldn’t disassemble the lamp by themselves at random.
  • Please ask professional installation company or electrical engineers to install the lamp,follow the user manual strictly. Any improper installation may cause falling,electric shock or fire hazard.
  • Use clean soft cloth dip soap water for cleaning,then wipe with dry soft cloth.Gasoline,acetone or any other organic solvent is not allowed in case of corroding the lamp body.
